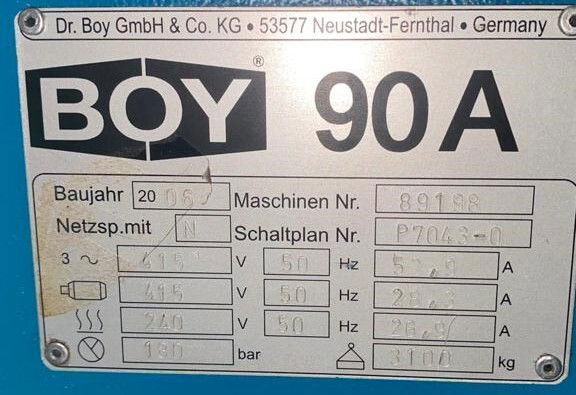

| MAKE : DR.BOY | YEAR : 2006/GERMANY |
MODEL : 90A
| Distance between tiebars:430 * 360 MM
|
VAPACITY : 90 TON
| Tie-bar diameter : 50 MM
|
Platten size : 630 MM*560MM
| Daylight between platen : MAX OPEN 725 MM
|
Opening stroke : 475 MM
| Ejector force : 43 KN
|
Ejector stroke :130 MM
| Control type : PROCAN CT
|
Screw diameter : 42 MM
| Injection volume : 262 CCM
|
Injection pressure : 1724 BAR
| Nozzel stroke : 230 MM`
|
Plasticising capacity : 36 G/S PS
| Numer of Heating zones : 4 NOS
|
Oil tank capacity : 210 L
| WeighT :3100 KG
|
Machine dimensions : 3.9 M* 1.3M*2.2 M
| Voltage : 380 / 415 V
|
| MANUAL : AVAILABLE |
|
